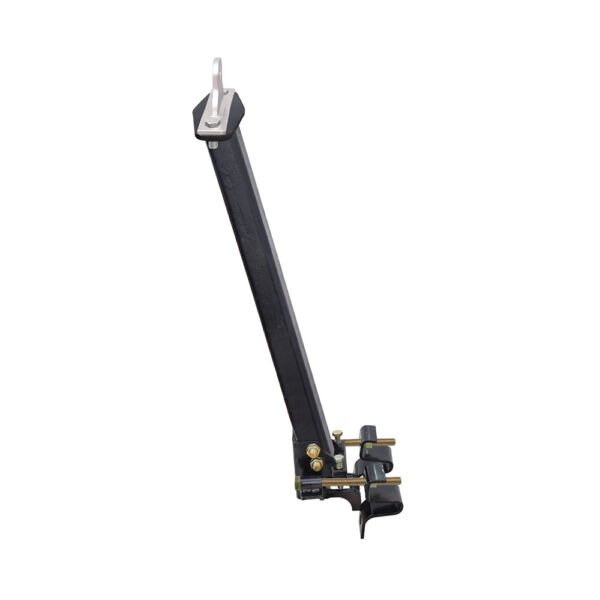

Edge Fix Anchor Post

SKU: SA28

Key Features

Span lengths are adjustable with the help of intermediates
The post comes with a unique tilted design to allow unobstructed movement of the user during the construction of roofs or metal structure
Can be used by maximum 4 users simultaneously
Compatible with beam having flange width of 150mm to 220mm
Comes with universal extremity plate PN4000(09) for making connections

Certification:

EN 795:2012 Type B, TS 16415:2013 Type B

Description

Description

KARAM offers a portable and extremely easy to install anchor post for installation of horizontal line on steel construction I-beam section.

Warranty: 1 year from the date of invoice against any manufacturing defects.

Ideal for use

Construction

Anchorage

Product Specifications

Material	ED coated high strength alloy steel
Weight	12.80kg
Minimum Breaking Strength	15kN
Certified to	EN 795:2012 Type B, Conforms to TS 16415:2013 Type B (for upto 4 user)
